Description
Performances
• Cutting capacity on steel:
recommended 15 mm, max. 20 mm, severance 25 mm
• Piercing 12 mm on steel
• 33 A @ 100% Duty cycle
• 42 A @ 60% Duty cycle
• 50 A @ 40% Duty cycle
• Gouging capacity 4,1 kg/h
Features
• Single phase input, 230 V 50/60 Hz
• Consumables worn out automatic detection
• Standard equipped with 6 m CP 70C MAR manual torch – (art 1626) with “on air” ignition, also available in 15 m length
(art.1626.15)
• Automatic torch type detection
• “Pilot self-restart” function selectable from the panel, which interrupts and automatically restarts the arc when cutting
nets and grids, thus increasing the operator productivity.
• Suitable for gouging
• The power source can also be powered by motor-driven generators of adequate power
Automation
• CP 70C DAR machine torch available in either 6 m – (art. 1627) or 15 m length – (art.1627.15)
• CNC analog Interface (art.441) available with multiple selectable arc voltages available for automated application

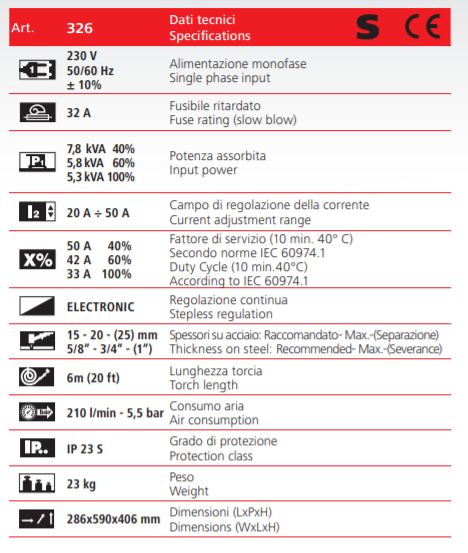

Technical Spec
