Description

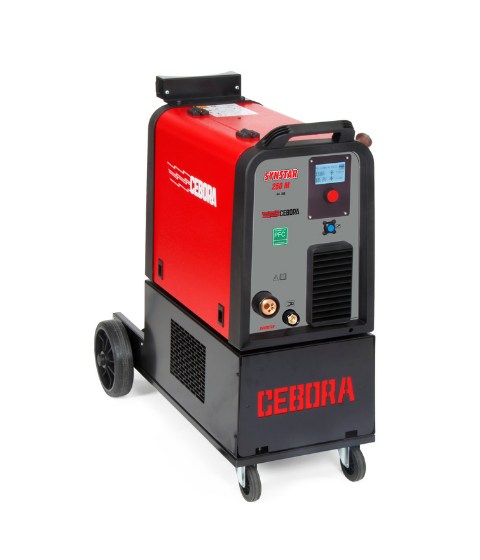

The new SYNSTAR 250 M (art. 358) is an inverter single-phase synergic power source for MIG-MAG welding, with 4-roller Cebora wire feed unit. The power source features 43 synergic curves for Ø 0.6/0.8/0.9/1.0/1,2 mm solid wire as well as for Ø 0.9 mm fl ux cored wire. The cored wires can be welded either with or without shielding gas, by simple polarity reverse. With the optional pulse function upgrade (art. 238) or with the double pulse (238 + 813), that allows to activate devoted pulse synergic curves for mild steel, stainless steel, aluminium and CuSi3, the SYNSTAR 250 M has more than 80 welding programs available.
The LCD panel allows the operator to read wire and gas type, current and thickness, voltage and wire speed. The power source is complete with many functions adjustable from the control panel such as: Arc Length, 2 times / 4 times, Spot Time, Pause Time, Inductance, Burn Back, Soft Start, pre-gas, post-gas, Automatic Hot Start, Automatic Crater Filler, 3 levels etc. It is a specially versatile power source, suitable for various applications, in particular for light – medium metal works, marked out by a low electrical input (PFC).
The Euro connector allows to use either a standard MIG torch or the Cebora Push-Pull 2003 torch, (in this case the current supplied by the power source is automatically limited to 200 A) It is possible to work with two different types of coils: Ø 200 mm or Ø 300 mm.
