Description

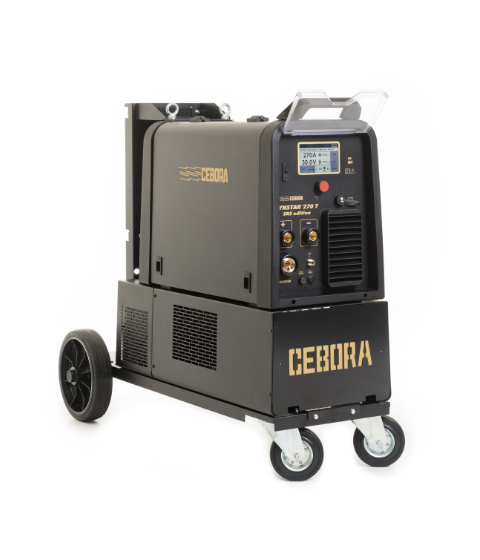

The new SYNSTAR 270 T SRS edition is a multiprocess inverter three-phase synergic power source for MIG-TIG-MMA welding, with 4-roller Cebora wire feed unit.(Ø 30mm, 0,098 ft). Complete with SRS Kit-SPATTER REDUCTION SYSTEM. This SHORT welding process enables to achieve completely
spatter-free welds with a reduced heat input. Factory fitted with current double level (MIG Short process), pulse and double pulse function, the SYNSTAR
270 T SRS edition has welding programs available for Ø 0,6/0,8/0,9/1,0/1,2 mm solid wire, as well as of stainless steel pulsed programs optimized for welding of thin thicknesses.
This power source can be equipped with 3 different types of torch:
• 4 m air cooled push-pull torch art. 2003 (160 A at 40%) ; the machine
output current is automatically limited to 200 A max.
• 3,5 m air cooled Cebora torch art. 1242 (280 A at 60%)
• 3,5 m water cooled Cebora torch art. 1241 (380 A at 60%)
The LCD multilanguage TOUCH SCREEN panel allows the operator to read and select process, wire and gas type, current and thickness, voltage and wire speed. The power source is complete with many functions adjustable from the TOUCH SCREEN control panel such as: Arc Length, short or pulsed welding process, 2 times / 4 times, Spot Time, Pause Time, Inductance, push-pull force, Burn Back, Soft Start, pre-gas and post gas. An optional cooling unit (art. 1681), as well as an Upgrade to the TIG function (art. 234) are also available. It is a specially versatile power source, suitable for various applications, in particular for medium metal works, marked out by a low electrical input (PFC).
