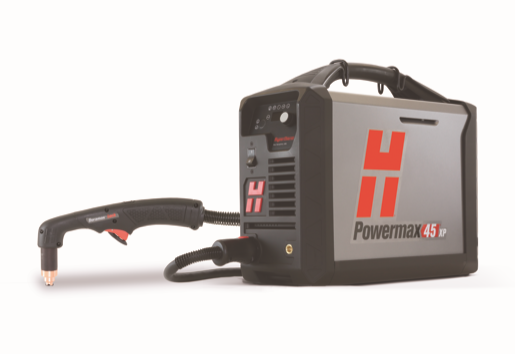

Description
Easy-to-use with versatile design
• Small size and light weight provides exceptional portability for
a 16 mm rated cutting system.
• Handheld and mechanized usage with CNC interface and
FastConnect™ torch connection.
• Patented drag-cutting technology makes it easy to use – even for
first-time operators.
• Tackle different jobs with multiple, easy-to-use torch and
consumable styles.
• No need to change the air pressure. Smart Sense™ technology
ensures that it is always correctly set.
• Mark, score and make precision gouges with new low amp process.
Maximum productivity
• Finish jobs faster with cut speeds one and a half times greater than
oxyfuel on 6 mm mild steel.
• Spend less time on grinding and edge preparation due to superior
cut and gouge quality.
• Fast change out of consumables using the new torch disable
switch feature.
Rugged and reliable
• Duramax® Lock torches are designed for high-impact and heat
resistance.
• SpringStart™ technology ensures consistent starting and a more
reliable torch.
• Hypertherm Certified™ reliability ensures performance in the most
demanding environment.
Specifications
Input voltages (± 10%) = 230 V, 1-PH, 50–60 Hz / 400 V, 3-PH, 50–60 Hz
Input current @ 6,5 kW = 230 V, 1-PH, 33 A / 400 V, 3-PH, 10 A
Output current = 10–45 A
Rated output voltage = 145 VDC
Duty cycle @ 40° C =
50% @ 45 A, 230 V, 1-PH
60% @ 41 A, 230 V, 1-PH
100% @ 32 A, 230 V, 1-PH
50% @ 45 A, 400 V, 3-PH
60% @ 41 A, 400 V, 3-PH
100% @ 32 A, 400 V, 3-PH
Open circuit voltage (OCV) = 275 VDC (230 V, CE/CCC) / 265 VDC (400 V CE/CCC)
Dimensions with handles = 442 mm D; 173 mm W; 357 mm H
Weight with 6,1 m torch = 15 kg
Gas supply =
Cutting: air (clean, dry and oil-free), nitrogen, F5
Gouging: air (clean, dry and oil-free), nitrogen, F5
Marking: air (clean, dry and oil-free), argon
Recommended gas inlet flow rate/pressure = 188 l/min @ 5,9 bar
Input power cable length = 3 m
Power supply type = Inverter – IGBT
Engine drive requirement = 12.5 kVA (10 kW) for full 45 A output
Electrical efficiency = 88%
Recyclability = 100%
Certifications = CCC for use in China. CE, RCM, CU/GOST-TR, UkrSEPRO, and Serbian AAA for use in Europe, Australia, Belarus, Kazakhstan, Russia, Serbia, Ukraine, and other countries where accepted.
Warranty = Power supply: 3-year / Torch: 1-year
