Description

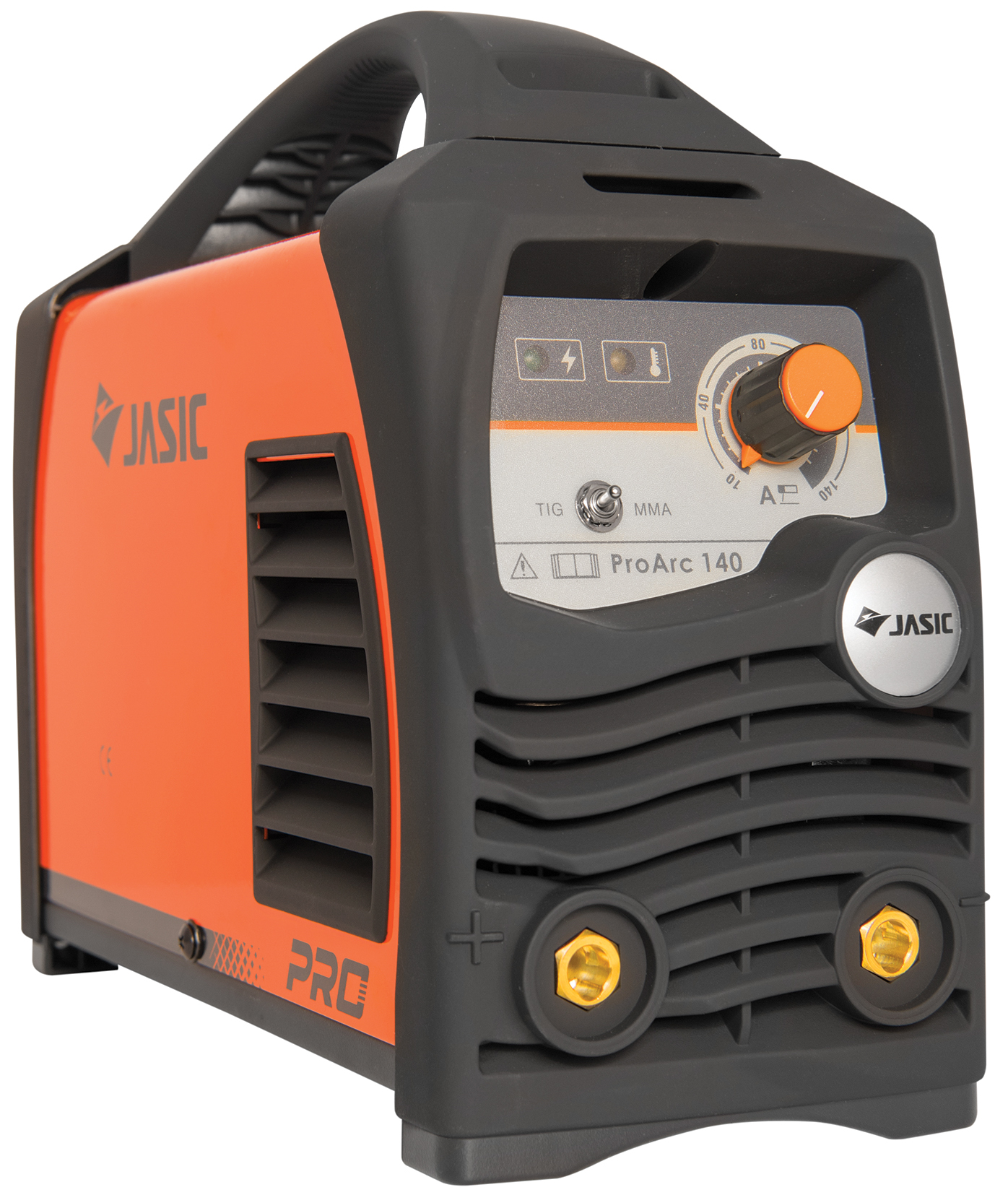

The JASIC Arc 140 MMA welding inverter is equipped with the latest IGBT technology and a singular PCB for improved efficiency and maintenance. This technologically advanced inverter is extremely user-friendly and offers reliable and consistent arc performance. The Arc 140 also offers lift TIG functionality making it an ideal choice for maintenance and light fabrication.
Key Features
• Professional quality IGBT inverter
• Anti-stick, Arc-force, Lift TIG
• Hot start for those difficult to strike electrodes
• 40Khz inverter frequency, high efficiency
• Compact size, lightweight and modern design
• Heavy duty 16-25mm dinse sockets
• Easy arc starting, minimal spatter
• Auto-compensation for voltage fluctuation
• High quality tactile rubber finish to mouldings and handle
• Supplied in full colour packaging
• Can weld electrodes of up to 3.2mm
• Generator friendly**
Technical Data
Input Voltage = AC 230V – 50/60 Hz
Ieff (A) = 15.5
Input Power (kVA) = 6
Current Range (A) = 10 – 140
Duty Cycle @ 40°C = 140A @ 35%
No-Load Voltage (V) = 63
Efficiency (%) = 85
Power Factor = 0.7
Protection/Insulation Class = IP21/F
