Description

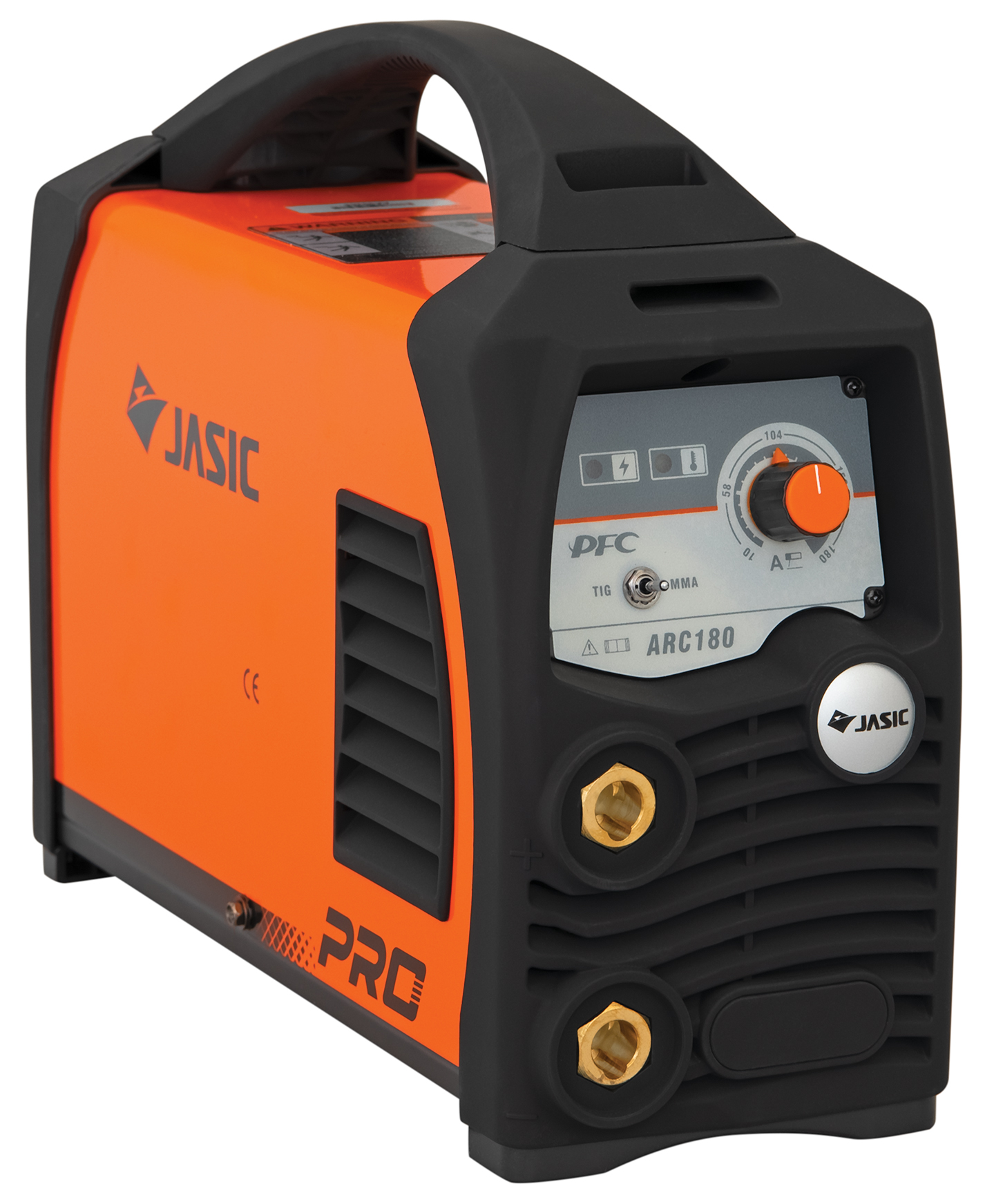

The JASIC Arc 180 PFC model uses PFC technology to provide advantages such as energy saving and a wide input voltage range. This technologically advanced inverter is extremely user-friendly and offers reliable and consistent arc performance. The Arc 180 PFC also offers lift TIG functionality making it an ideal choice for maintenance and light fabrication.
Key Features
• IGBT inverter technology
• Wide input voltage 95-265V
• Anti-stick, Arc-force, Hot start, Lift TIG
• 33Khz inverter frequency, high-efficiency
• Compact size, lightweight and modern design
• Heavy duty 35-50mm dinse sockets
• Easy arc starting, minimal spatter
• Auto-compensation for voltage fluctuation
• High quality tactile rubber finish to mouldings and handle
• Supplied in full colour packaging
• Can weld electrodes of up to 4mm
• Generator friendly**
Technical Data
Input Voltage = 95-265V – AC 50/60Hz 115V / 230V
Ieff (A) = 15.2 / 13.4
Input Power (kVA) = 3.2 / 5.83
Current Range (A) = 10-110 / 10-180
Duty Cycle @ 40°C = 110A @ 35% / 180A @ 35%
No-Load Voltage (V) = 68
Efficiency (%) = 85
Power Factor = 0.998
Protection/Insulation Class = IP21S/F
