Description

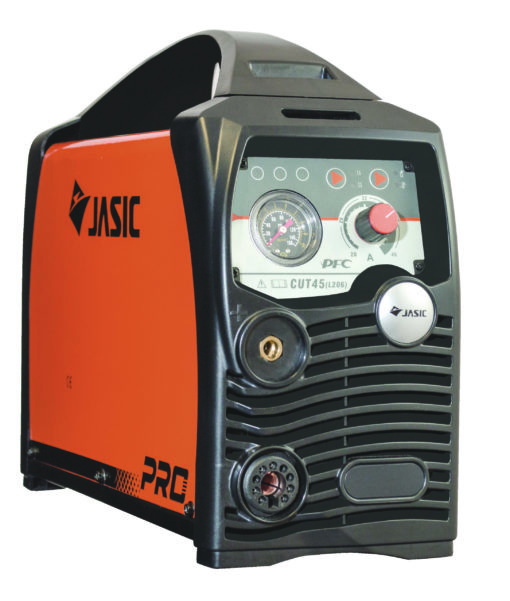

The JASIC Cut 45P air plasma cutter equipped with PWV technology and high powered IGBT components is the perfect solution for cutting low carbon steel, stainless steel and aluminium. This user-friendly and highly portable inverter offers smooth, fast and precise cutting on material up to 15mm (steel) and a maximum of 20mm, where a severance cut is required. Another outstanding feature of this high specification model is PFC (power factor correction) that provides substantial energy saving benefits for the user.
Key Features
• IGBT plasma cutting inverter
• Wide voltage inverter 95-265V
• Lightweight, portable modern design
• Variable cutting control
• Soft touch LED control display
• Smooth precise cutting
• PFC energy saving inverter
• Clean dry air requirement (170 Ltr/Min @ 4.5 bar)
• Includes PT60 6m plasma torch
• Suitable for automation cutting (optional)
• Generator friendly**
Technical Data
Input Voltage = AC 95-265V – 50/60 Hz 115V / 230V
Ieff (A) = 17 / 13.5
Input Power (kVA) = 3.6 / 5.29
Current Range (A) = 20-30 / 20-45
Duty Cycle @ 40°C = 30A @ 30% / 45A @ 35%
Cutting Capacity (Clean) = 8mm / 15mm
Cutting Capacity (Severance) = 10mm / 20mm
Efficiency (%) = 85
Power Factor = 0.99
Protection/Insulation Class = IP21S/F
Compressed Air Requirement = 170 Ltr/Min @ 4.5 Bar (65 psi)
