Description

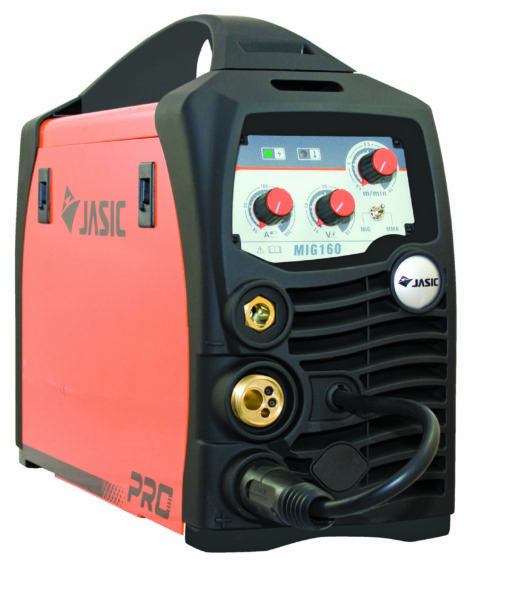

The JASIC MIG 160 Compact is equipped with powerful IGBT components, multi process capabilities and a singular PCB for improved efficiency and maintenance. This compact and portable inverter offers excellent welding characteristics and consistently reliable performance for both MIG/MAG and MMA welding processes.
Key Features
• IGBT MIG/MMA multi process
• Single PCB compact welding inverter
• Stable arc and reliable performance
• Easy arc starting, less spatter, stable current
and excellent weld bead shaping
• Suitable for 0.6, 0.8 and 1.0mm welding wire
• Compact size, lightweight and modern design
• Burn back control
• Ideal for production, site work & maintenance
• Can weld electrodes of up to 4mm
• Generator friendly**
Technical Data
Input Voltage = AC 230V – 50/60 Hz
Ieff (A) = 15.2
Input Power (kVA) = 5.9
Voltage Adjustment Range (V) = 11 – 26
Current Range (A) = 30 – 160
Duty Cycle @ 40°C = 160A @ 35%
No-Load Voltage (V) = 53
Wire Spool Size = ø 200mm
Efficiency (%) = 85
Power Factor = 0.7
Protection/Insulation Class = IP21S/F
