Description

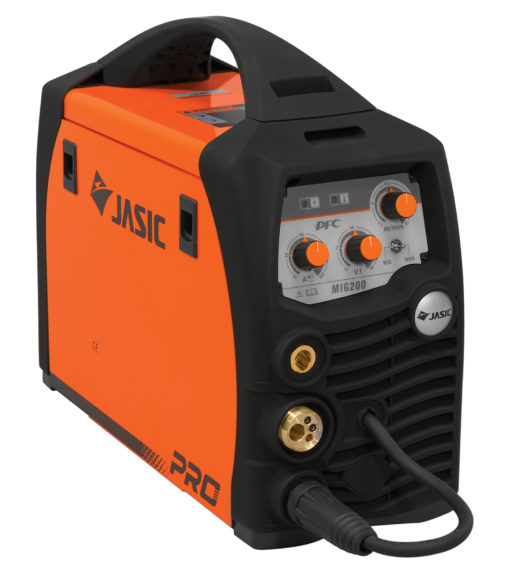

The JASIC MIG 200 PFC Compact operates on a wide input voltage range, 95-265V and is equipped with powerful IGBT components and a singular PCB for improved efficiency and maintenance. This compact technologically advanced inverter is extremely user-friendly and offers reliable and consistent arc for both MIG/MAG and MMA performance. Offering a stable arc and reliable performance with the added benefit of being dual voltage makes this machine your perfect partner for site work, maintenance and light fabrication.
Key Features
• IGBT MIG/MMA multi process
inverter technology – for the professional user
• Wide input voltage 95-265V
• PFC – Energy saving benefits for the user
• Single PCB compact welding inverter
• Stable arc and reliable performance
• Suitable for 0.6 to 1.0mm wires
• Compact size, lightweight and modern design
• Burn back control
• Ideal for production, site work & maintenance
• Reverse polarity
• Can weld electrodes of up to 4mm
• Generator friendly**
Key Features
Input Voltage = 95-265V (115V) – AC 50/60Hz (230V)
Ieff (A) = 20.1 / 14.8
Input Power (kVA) = 4.2 / 5.8
Voltage Adjustment Range (V) = 11 – 28
Current Range (A) = MIG 30-140 30-200 / MMA 10-140 10-180
Duty Cycle @ 40°C = 200A @ 35%
No-Load Voltage (V) = 53
Wire Spool Size = ø 200mm
Efficiency (%) = 85
Power Factor = 0.998
Protection/Insulation Class = IP21S/F
