Description

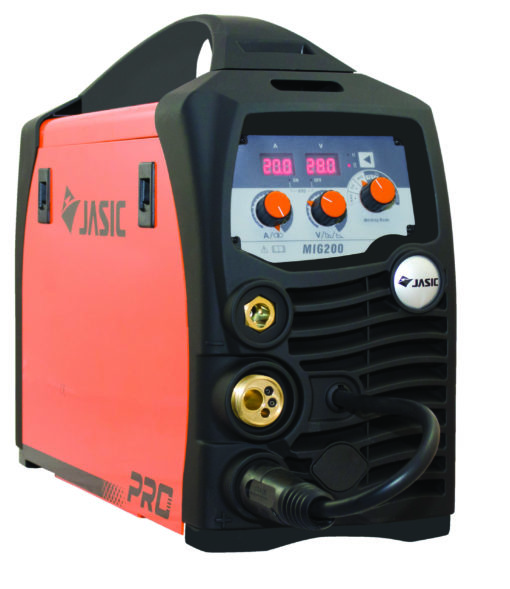

The JASIC MIG 200 Synergic Compact is equipped with powerful IGBT components, multi process capabilities, digital meters and a singular PCB for improved efficiency and maintenance. This compact and portable synergic inverter offers excellent welding characteristics and consistently reliable performance for both MIG/MAG, MMA and Lift TIG welding processes. Stable arc and reliable performance ideal for production, site work & maintenance.
Key Features
• Advanced synergic control
(pulse parameters are selected automatically)
• IGBT MIG/MAG/MMA/Lift TIG multi process
• Self-adaptive crater filling function
• Digital amp & voltmeter
• Working frequency is beyond the audio range,
greatly reducing noise pollution
• Easy arc starting, less spatter, stable current
and excellent weld bead shaping
• Suitable for 0.6, 0.8 and 1.0mm welding wire
• Compact size, lightweight and modern design
• Burn back control
• Can weld electrodes of up to 4mm
• Generator friendly**
Technical Data
Input Voltage = AC 230V – 50/60 Hz
Ieff (A) = 21
Input Power (kVA) = 9.4
Voltage Adjustment Range (V) = 11 – 28
Current Range (A) = 10 – 200
Duty Cycle @ 40°C = 200A @ 35%
No-Load Voltage (V) = 53
Wire Spool Size = ø 200mm
Efficiency (%) = 85
Power Factor = 0.7
Protection/Insulation Class = IP21S/F
