Description

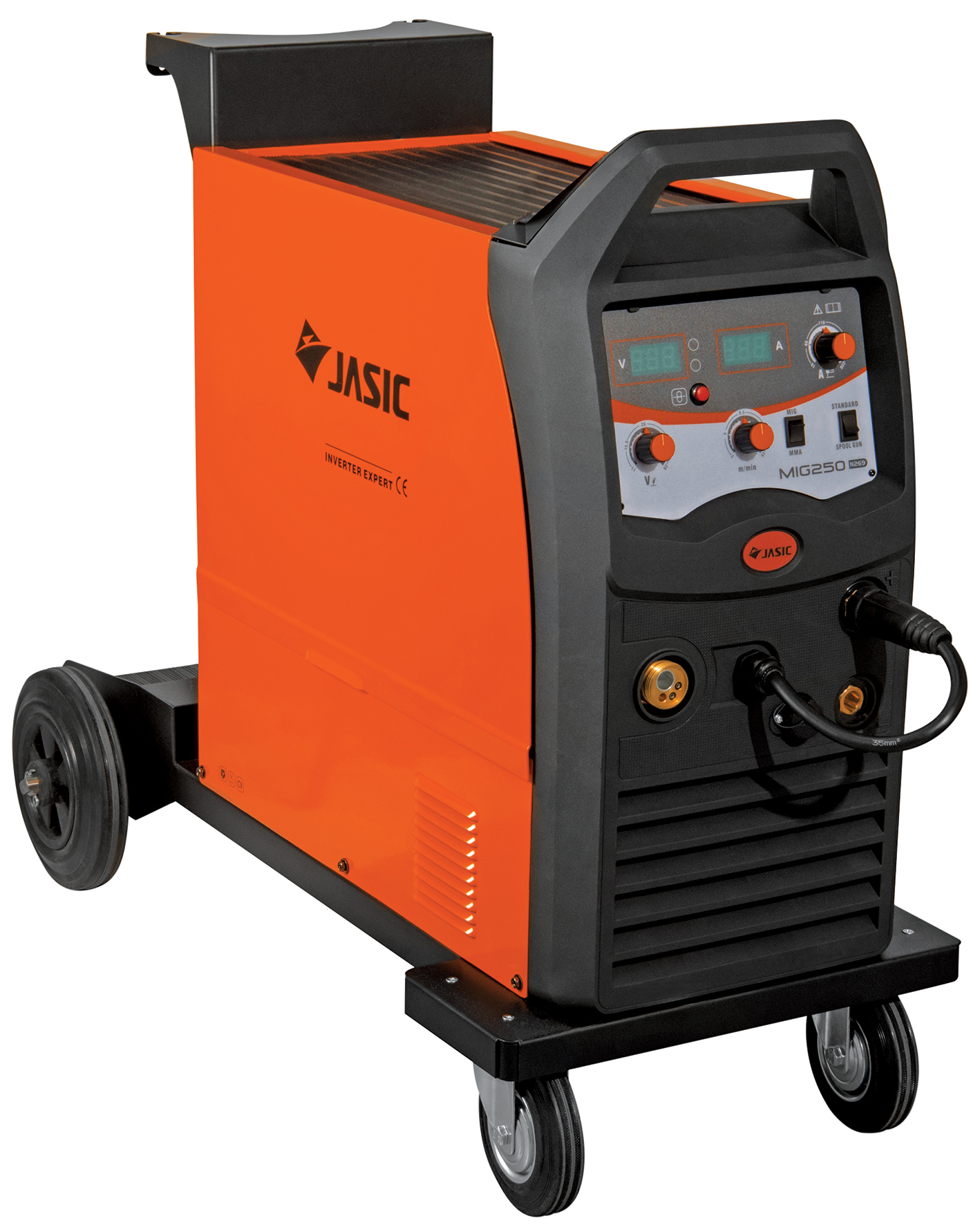

The JASIC MIG 252 Compact is equipped with powerful IGBT components, a digital A/V display and multi process capabilities. The inverter offers excellent welding characteristics and consistently reliable performance for highly demanding and repetitive weld cycles. This high quality single phase machine delivers an impressive 250 amps at 35% duty cycle, making the MIG 252 Compact an excellent choice for medium duty fabrication work.
Key Features
• High performance compact MIG/MAG/MMA inverter
• Suitable for 0.6, 0.8 and 1.0mm welding wire
• Advanced control circuitry
• Digital A/V display
• High duty cycle
• Stable and reliable arc
• Burn back control
• Spool gun interface
• Wire inching feature
Technical Data
Input Voltage = AC 230V – 50/60 Hz
Ieff (A) = 28.4
Input Power (kVA) = 11
Voltage Adjustment Range (V) = 11 – 29
Current Range (A) = 30 – 250
Duty Cycle @ 40°C = 250A @ 35%
No-Load Voltage (V) = 52
Wire Spool Size = ø 300mm
Efficiency (%) = 85
Power Factor = 0.75
Protection/Insulation Class = IP21S/F
