Description

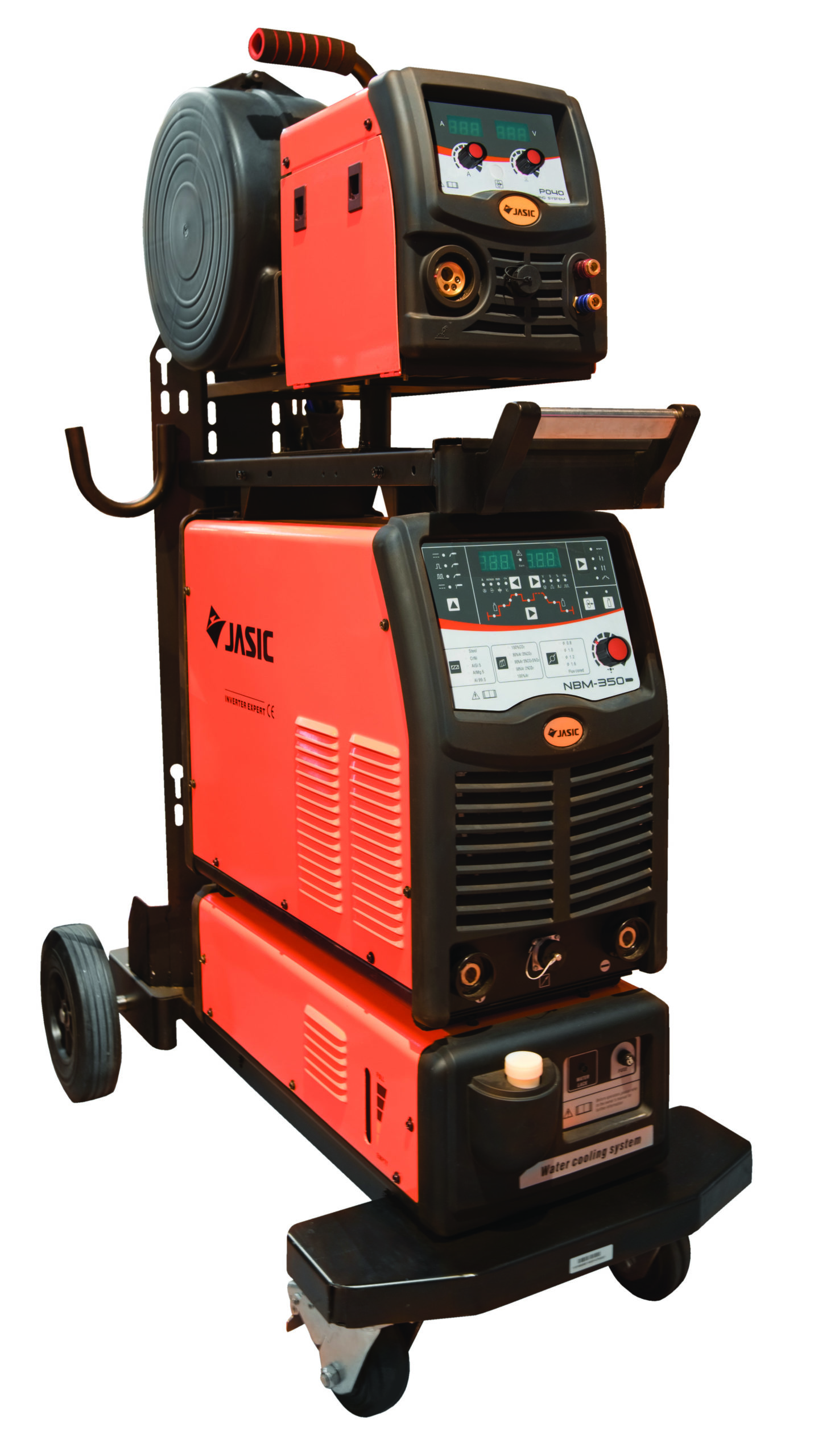

The JASIC MIG 350 Pulse is equipped with powerful IGBT components, digital meters and multi process capabilities offers excellent welding characteristics and rugged, reliable performance. This three phase inverter offers synergic curves for common materials and wires. The machine also has self-diagnostic protection systems that provides extreme reliability.
Key Features
• IGBT multi process inverter
• Synergic, MIG/MAG pulse, double pulse and DC MMA
• DSP digital technology for optimum welding performance
• 4 roll wire feed unit
• Suitable for 0.8, 1.0, 1.2 and 1.6mm welding wire
• Easy parameter settings for the operator
• Synergic curves for common materials & wire diameters
• Self diagnostic system
• Encoder feedback control of wire feed system
• Power & status LED’s
• Integrated water cooling system
• Inverter trolley takes full size gas bottle
Technical Data
Input Voltage = AC 400V – 50/60 Hz
Ieff (A) = 23.6
Input Power (kVA) = 21.1
Voltage Adjustment Range (V) = 17 – 31.5
Current Range (A) = 10 – 350
Duty Cycle @ 40°C = 350A @ 60%
No-Load Voltage (V) = 70
Wire Speed (m/min) = 1 – 18
Efficiency (%) = 85
Power Factor = 0.85
Protection/Insulation Class = IP21S/F
