Description

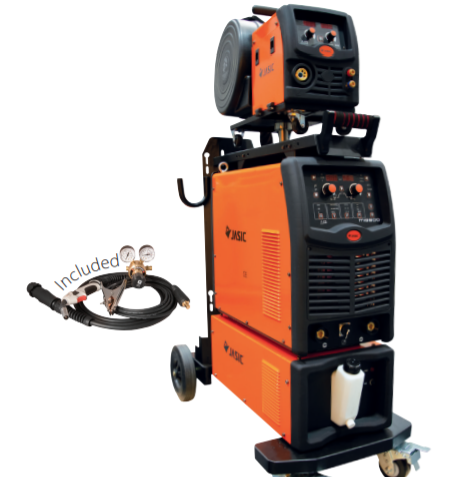

The JASIC MIG 500P is a high quality digital MIG/MAG power source. It provides low spatter consistent welding with minimal rework on a wide range of materials. The JASIC MIG 500P provides multi process pulsed MIG, synergic MIG, TIG and MMA options for a wide range of applications.
Key Features
• IGBT multi process inverter
• Pulsed MIG, MIG/MAG, TIG and DC MMA
• Synergic or standard operating modes
• DSP digital technology for optimum welding performance
• Smart fan and water control
• Job storage system
• 4 roll wire feed unit
• Suitable for 0.8, 1.0, 1.2 and 1.6mm welding wire
• Easy parameter settings for the operator
• Synergic curves for common materials & wire diameters
• Self diagnostic system
• Encoder feedback control of wire feed system
• Power & status LED’s
• Inverter trolley takes full size gas bottle
Technical Data
Input Voltage = 400 +/- 20% 3P
Ieff (A) = 28.6
Input Power (kVA) = 26.7
Voltage Adjustment Range (V) = 10 – 50
Current Range (A) = 30 – 500
VRD Voltage MMA (V) = 15
Duty Cycle @ 40°C = 500A @ 50%
No-Load Voltage (V) = 86
Wire Speed (m/min) = 1.5 – 23
Efficiency (%) = 92
Power Factor = 0.9
Protection/Insulation Class = IP23S/F
