Description
The JASIC Power Arc 180 SE welding inverter is equipped with the latest IGBT technology and a singular PCB for improved efficiency and maintenance. This technologically advanced inverter is equipped with self-adaptive arc force and offers easy starting with minimal spatter. The Arc 180 SE also offers lift TIG functionality making it an ideal choice for maintenance and light fabrication.
Key Features
• IGBT inverter technology for the professional user
• MMA/DC Lift TIG
• Anti-stick, Arc-force, Hot start, Lift TIG
• 40Khz inverter frequency, high-efficiency
• Compact size, lightweight and modern design
• Heavy duty 35-50mm dinse sockets
• Easy arc starting, minimal spatter
• Stable and reliable arc
• Auto-compensation for voltage fluctuation
• High quality tactile rubber finish to mouldings and handle

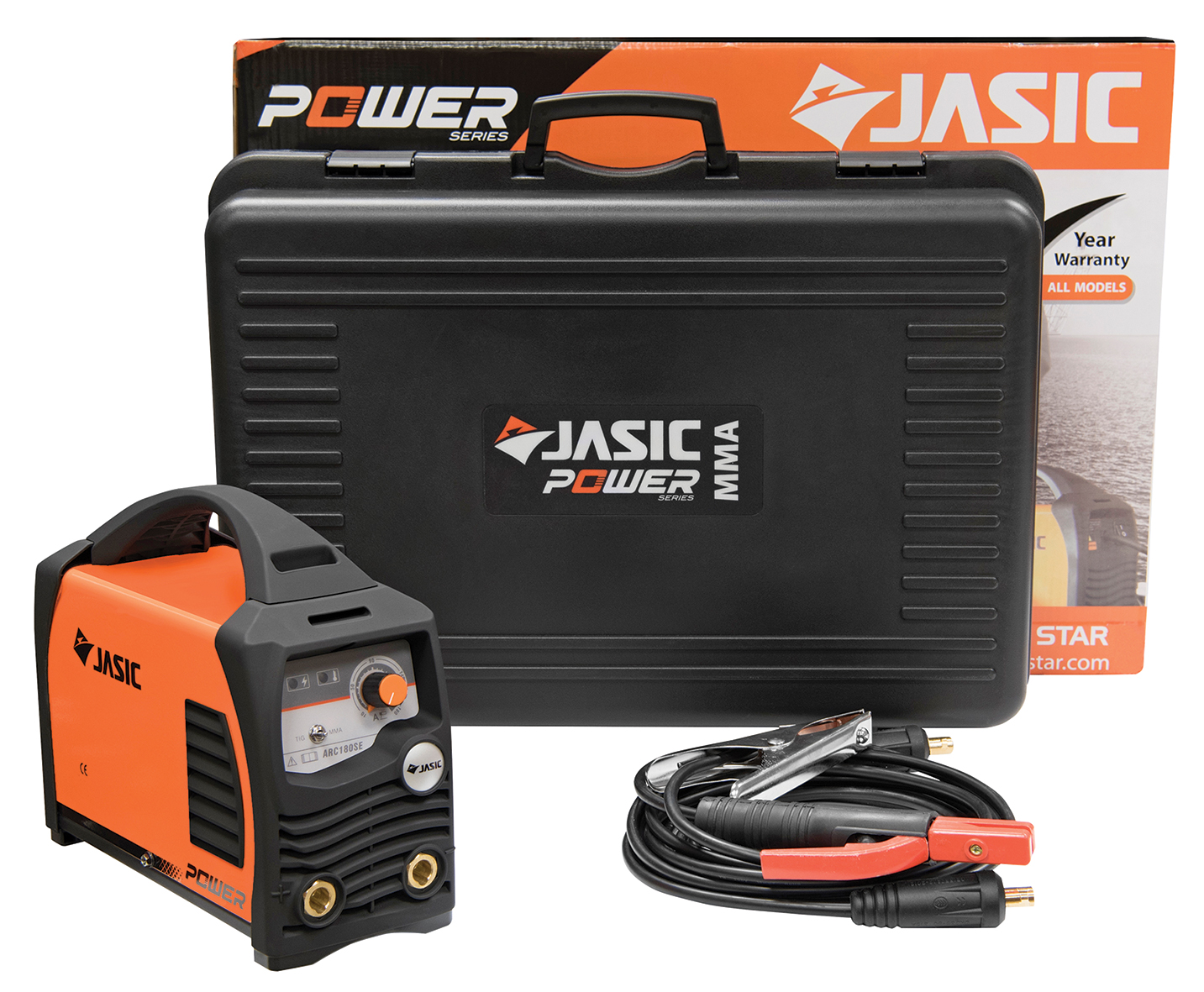

• Includes protective carry case and MMA leads
• Can weld electrodes of up to 4mm
• Generator friendly**
Technical Data
Input Voltage = AC 230V – 50/60 Hz
Ieff (A) = 21.3
Input Power (kVA) = 8.3
Current Range (A) = 10 – 180
Duty Cycle @ 40°C = 160A @ 35%
No-Load Voltage (V) = 63
Efficiency (%) = 85
Power Factor = 0.7
Protection/Insulation Class = IP21/F
