Description

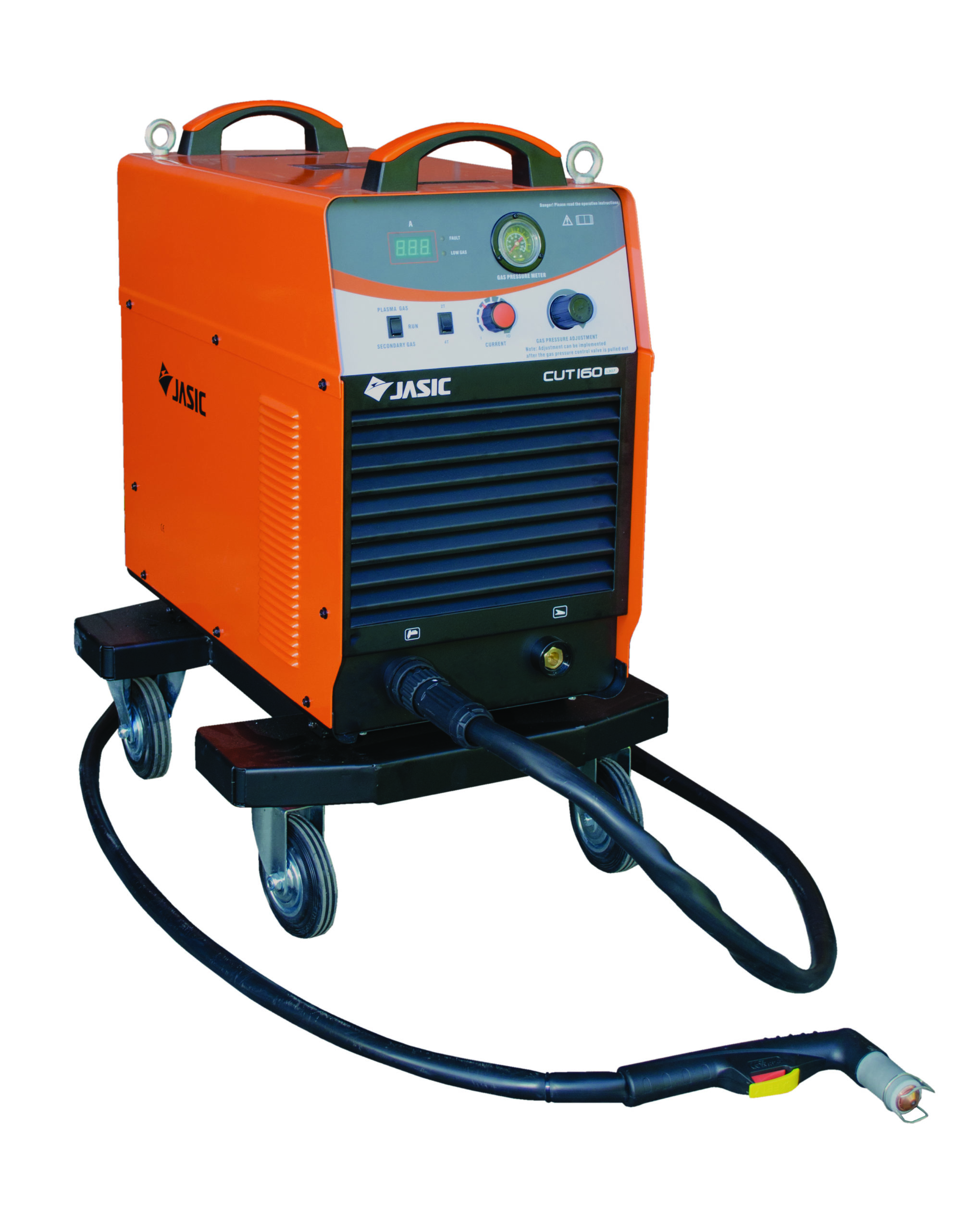

The JASIC Pro Plasma Cut 160 is a professional high-end cutting inverter equipped with the latest IGBT technology. This technologically advanced plasma inverter is extremely user-friendly and offers consistently reliable cutting performance. The machine provides variable cutting control that allows
the operator to produce precise smooth cuts.
Key Features
• IGBT plasma cutting inverter
• Wheel mounted, easy to manoeuvre
• Variable cutting control
• HF ignition
• LED display
• Smooth precise cutting
• Simple operation
• In-built pressure regulator
• Suitable for automated cutting (optional)
• PI50LT 6m hand plasma torch
• Generator friendly**
Technical Data
Input Voltage = AC 400V – 50/60 Hz
Ieff (A) = 48
Input Power (kVA) = 43
Current Range (A) = 30 – 160
Duty Cycle @ 40°C = 160A @ 60%
Cutting Capacity (Clean) = 45 mm
Cutting Capacity (Severance) = 50 mm
Efficiency (%) = 85
Power Factor = 0.99
Protection/Insulation Class = IP21S/F
Compressed Air Requirement = 220 Ltr/Min @ 5 Bar (73 psi)
