Description

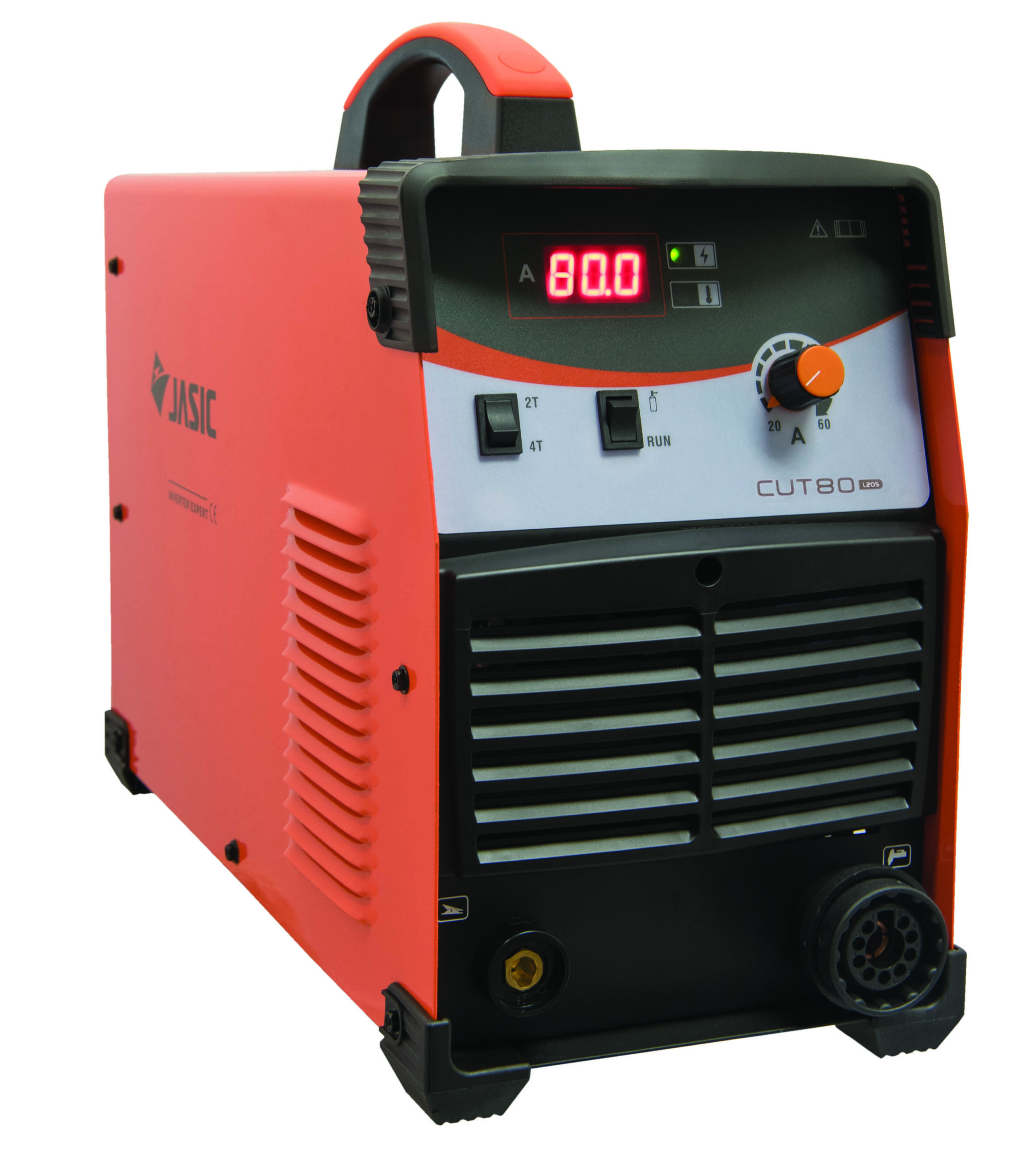

The New JASIC Pro Plasma Cut 80 is a professional high-end cutting inverter equipped with the latest IGBT technology. This technologically advanced plasma inverter is extremely user-friendly and offers reliable cutting performance. The machine provides variable cutting control that allows the operator to produce precise smooth cuts.
Key Features
• Latest IGBT plasma cutting inverter
• Lightweight, portable robust design
• Variable cutting control
• 20mm cut on mild steel
• 6 mtr hand torch with Euro connection
• Non HF ignition
• LED display
• Smooth precise cutting
• CNC connection for automation cutting
• Simple operation
• Includes PT100 6m plasma torch
• Generator friendly**
Technical Data
Input Voltage = AC 400V – 50/60 Hz
Ieff (A) = 14
Input Power (kVA) = 15.8
Current Range (A) = 20-80
Duty Cycle @ 40°C = 80A @ 40%
Cutting Capacity (Clean) = 25 mm
Cutting Capacity (Severance) = 30 mm
Efficiency (%) = 85
Power Factor = 0.9
Protection/Insulation Class = IP21S/F
Compressed Air Requirement = 200 Ltr/Min @ 5 Bar (73 psi)
