Description

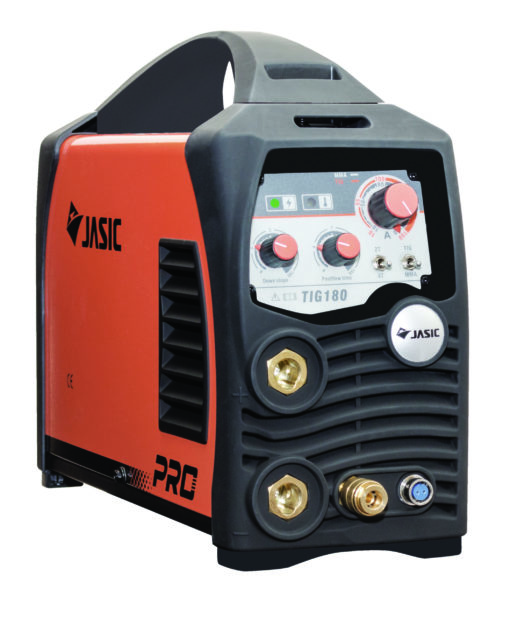

The JASIC TIG 180 is equipped with powerful IGBT components and a singular PCB for improved efficiency and maintenance. This technologically advanced inverter is extremely user-friendly and offers reliable and consistent arc performance. The TIG 180 with high frequency starting also offers MMA
functionality making it an ideal choice for maintenance or manufacturing.
Key Features
• Single PCB construction, easy for testing and maintenance
• IGBT TIG/MMA inverter technology
• High frequency inverter, high efficiency
• Anti-stick, Arc-force, Hot start 2T/4T
• Down slope and post flow
• Easy start, stable and reliable arc
• Auto-compensation for voltage fluctuation
• Compact size, lightweight and modern design
• Heavy duty 35-50mm dinse sockets
• High quality tactile rubber finish to mouldings and handle
• Supplied in full colour packaging
• Generator friendly**
Technical Data
Input Voltage = AC 230V – 50/60 Hz
Ieff (A) = 16.5
Input Power (kVA) = 7.1
Current Range (A) = TIG 10-180 / MMA 10-160
Duty Cycle @ 40°C = TIG 180A @ 35% / MMA 160A @ 35%
No-Load Voltage (V) = 65
Efficiency (%) = 85
Power Factor = 0.7
Protection/Insulation Class = IP21/F
