Description

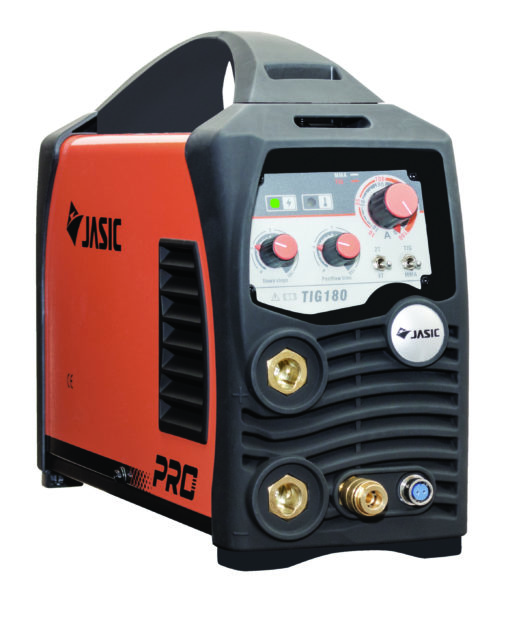

The JASIC TIG 180 dual voltage is equipped with powerful IGBT components and a singular PCB for improved efficiency. This technologically advanced inverter is extremely user-friendly and offers reliable and consistent arc performance. The TIG 180 with high frequency starting also offers MMA functionality making it an ideal choice for maintenance or manufacturing.
Key Features
• Single PCB construction, easy for testing and maintenance
• IGBT TIG/MMA inverter technology
• Dual input voltage
• High frequency inverter, high efficiency
• Anti-stick, Arc-force, Hot start 2T/4T
• Down slope and post flow
• Easy start, stable and reliable arc
• Auto-compensation for voltage fluctuation
• Compact size, lightweight and modern design
• Heavy duty 35-50mm dinse sockets
• High quality tactile rubber finish to mouldings and handle
• Supplied in full colour packaging
• Generator friendly**
Technical Data
Input Voltage AC 115V/230V – 50/60 Hz 115V / 230V
Ieff (A) = 18.5 / 14.2
Input Power (kVA) = 4 / 7
Current Range (A) TIG 10-120 MMA 10-100 / TIG 10-180 MMA 10-160
Duty Cycle @ 40°C = 120A @ 35% / 180A @ 40%
No-Load Voltage (V) = 65
Efficiency (%) = 85
Power Factor = 0.7
Protection/Insulation Class = IP21/F
