Description

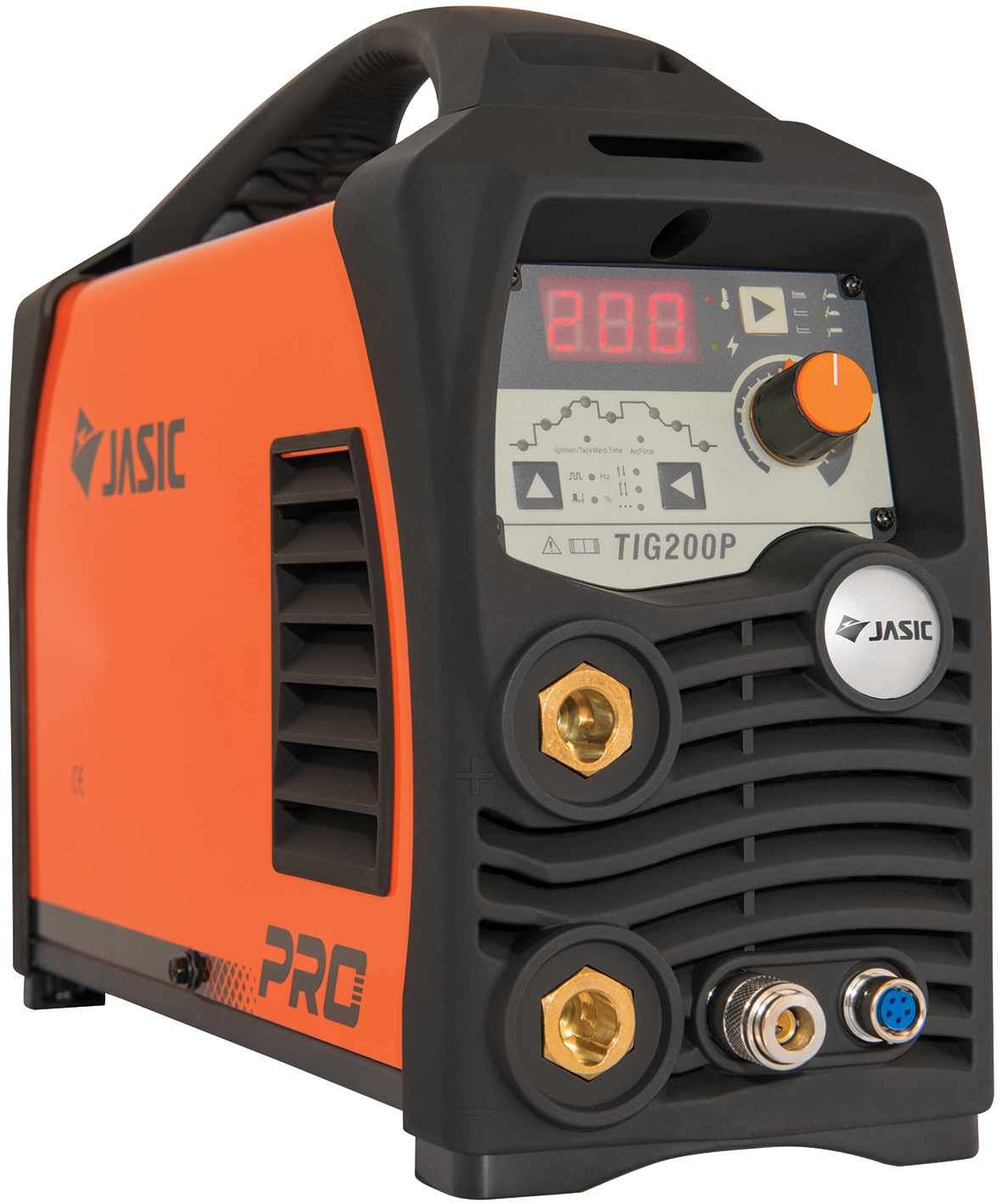

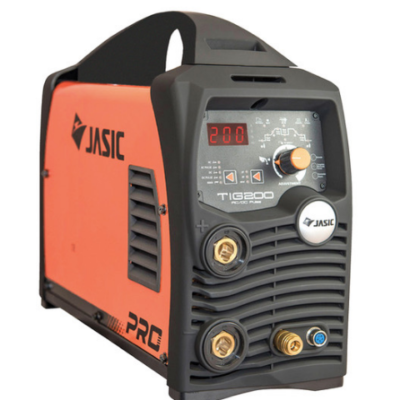

The JASIC TIG 200 PFC Pulse operates on a wide input voltage range 95-265V and is equipped with powerful IGBT components and a singular PCB for improved efficiency and maintenance. This technologically advanced inverter is extremely user-friendly and offers reliable and consistent arc performance. The TIG 200 with high frequency starting also offers MMA functionality making it an ideal choice for maintenance or manufacturing.
Key Features
• DC Pulse TIG/MMA
• Wide input voltage 95-265V
• Single PCB construction, easy for testing and maintenance
• PFC energy saving technology
• IGBT inverter technology
• High frequency inverter, high efficiency
• Digital control, HF arc ignition 2T/4T
• Pulse frequency 0.5-200 Hz
• Easy start, stable and reliable arc
• Auto-compensation for voltage fluctuation
• Compact size, lightweight and modern design
• Heavy duty 35-50mm dinse sockets
• High quality tactile rubber finish to mouldings and handle
• Supplied in full colour packaging
• Generator friendly**
Technical Data
Input Voltage = 95-265V – AC 50/60Hz 115V / 230V
Ieff (A) = 27.7 / 14.2
Input Power (kVA) = 4 / 6
Current Range (A) = TIG 10-160 MMA 10-125 / TIG 10-200 MMA 10-180
Duty Cycle @ 40°C = TIG 160A @ 60% MMA 125A @ 60% / TIG 200A @ 30% MMA 180A @ 25%
No-Load Voltage (V) = 65
Efficiency (%) = 85
Pulse Frequency (Hz) = 0.5-200
Power Factor = 0.99
Protection/Insulation Class = IP21S/F
