Description

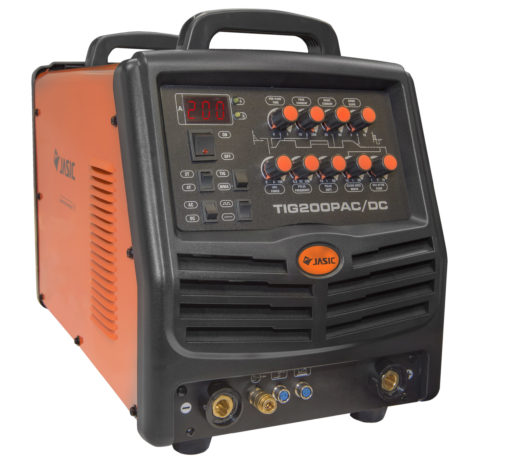

The JASIC TIG 200 Pulse AC/DC is a technologically advanced single phase inverter power source suitable for medium to large production work. The innovative and user-friendly analog panel allows full control of the welding parameters. The excellent technical characteristics of the 200 AC/DC make it
an ideal choice for professionally qualified TIG welders that require precise and reliable performance.
Key Features
• TIG Pulse AC/DC with analog control
• Digital display
• Peak current control, 2T/4T
• Pre-post flow time, up/down slope
• Pulse adjustment
• Pulse frequency, pulse duty, arc force, cleaning width
• Remote control interface
• AC function for aluminium and aluminium alloys
• DC TIG function for carbon steel,
copper and non-ferrous metals
• Smooth arc and stable welding performance
• Generator friendly**
Technical Data
Input Voltage = AC 230V – 50/60 Hz
Ieff (A) = 18
Input Power (kVA) = 9.4
Current Range (A) = AC 30-185 / DC 10-185
Duty Cycle @ 40°C = 185A @ 20%
No-Load Voltage (V) = 70
Protection/Insulation Class = IP21S/B
