Description

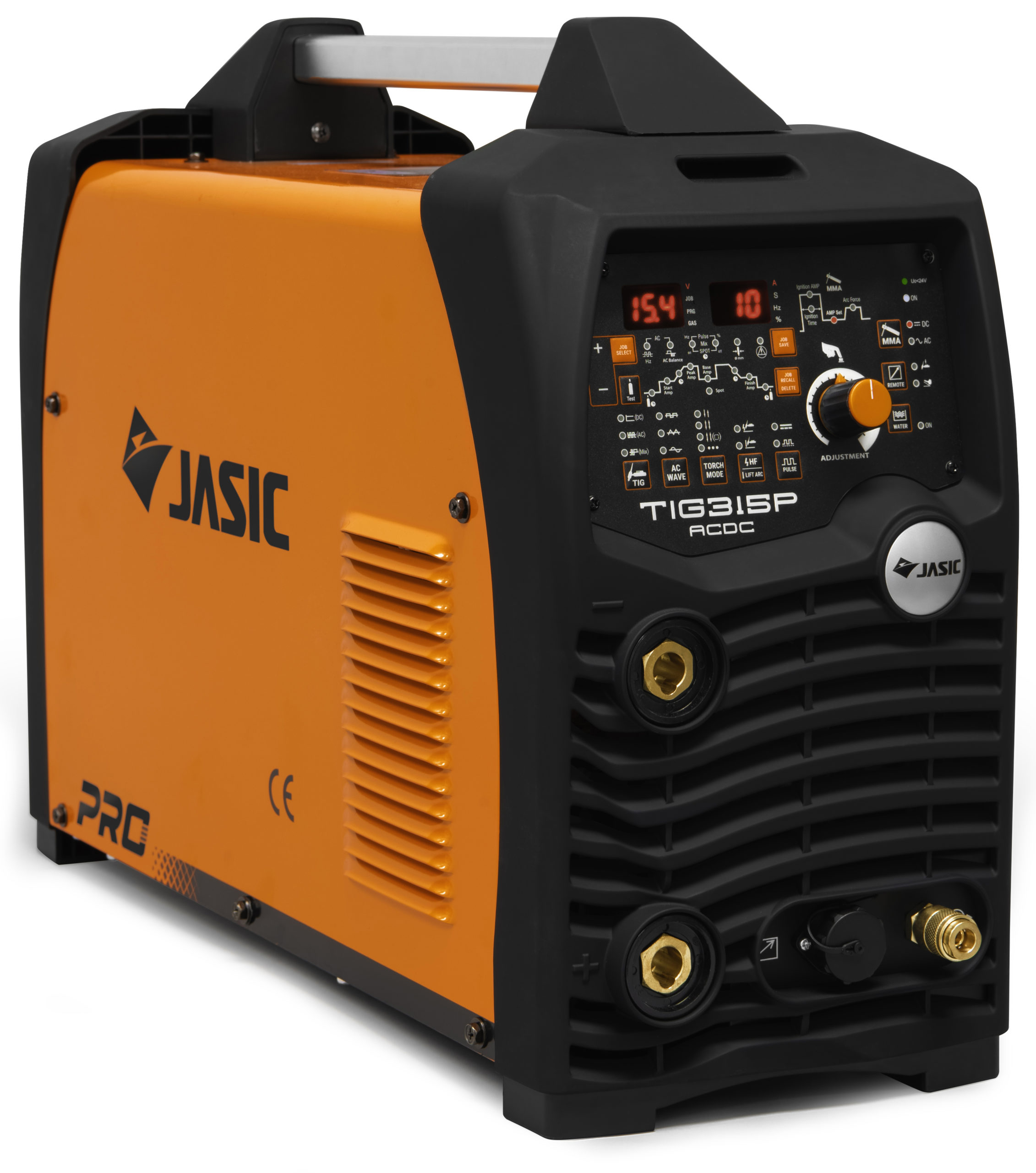

The JASIC TIG 315 is a digital AC/DC inverter welder with a wide range of functions, high performance and advanced technology. This multi-function welder with AC TIG welding (square wave, triangular wave and sine wave), AC pulsed TIG welding, DC TIG welding, DC pulsed TIG welding, AC-DC hybrid TIG welding and coated electrode MMA welding (DC, AC). It can be used in a wide range of welding operations with various types of materials.
The excellent welding performance and function rich technology make it a great choice for the professional welder with high quality demands.
Key Features
• TIG AC/DC Pulse with digital control
• Program memory storage up to 50 sets of data
• Microprocessor control of a wide range of functions
• Multi wave options on AC
• AC/DC TIG hybrid feature
• Variable AC frequency
• HF and lift TIG
• Remote control interface
• VRD function
• Digital display
• Intelligent fan and cooler control
• Excellent welding characteristics
• Generator friendly**
Technical Data
Input Voltage = AC 400V +/-15% – 50/60 Hz
Ieff (A) = 12.4
Input Power (kVA) = 14
Current Range (A) = TIG 10-315 / MMA 10-270
Duty Cycle @ 40°C = TIG 315A @ 30% / MMA 270A @ 30%
No-Load Voltage (V) = 73 (12.4V – VRD)
Efficiency (%) = 85
Protection/Insulation Class = IP21S/F
