Description

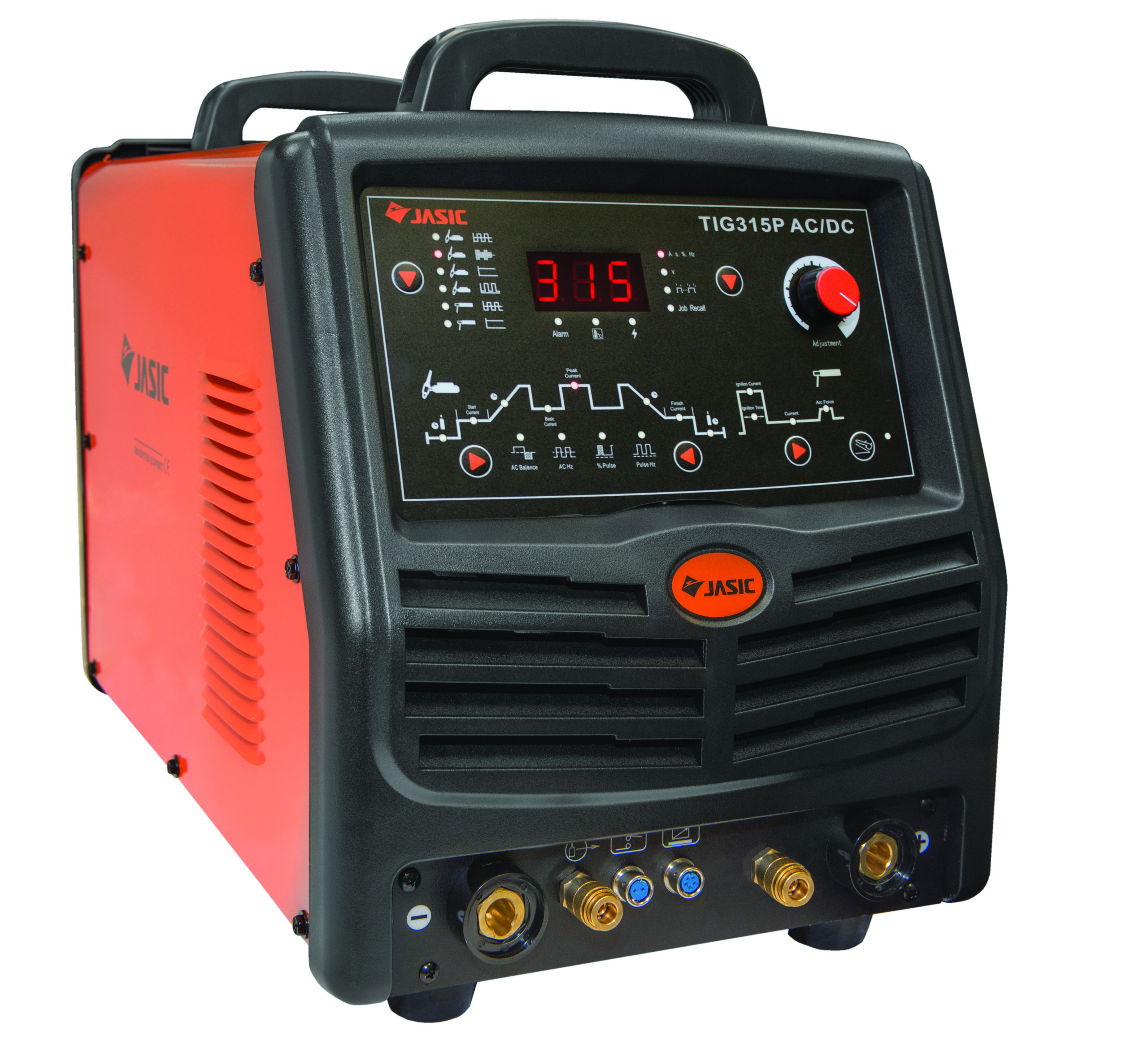

The JASIC TIG 315 Pulse AC/DC is a technologically advanced three phase inverter power source is suitable for medium to large production work. The innovative and user-friendly digital panel allows full control of the welding parameters. The excellent technical characteristics of the 315 AC/DC make it an ideal choice for professionally qualified TIG welders that require precise and reliable performance.
Key Features
• TIG Pulse AC/DC with digital control
• Program memory storage
• Peak current control, 2T/4T
• Pre-post flow time, up/down slope
• Pulse adjustment
• Pulse frequency, pulse duty, arc force, cleaning width
• Remote control interface
• AC function for aluminium and aluminium alloys
• DC TIG function for carbon steel,
copper and non-ferrous metals
• Smooth arc and stable welding performance
Technical Data
Input Voltage = AC 400V – 50/60 Hz
Ieff (A) = 13
Input Power (kVA) = 13.1
Current Range (A) = AC 10-315 / DC 10-250
Duty Cycle @ 40°C = TIG 315A @ 20% / MMA 250A @ 40%
No-Load Voltage (V) = 45
Protection/Insulation Class = IP21S/B
