Description

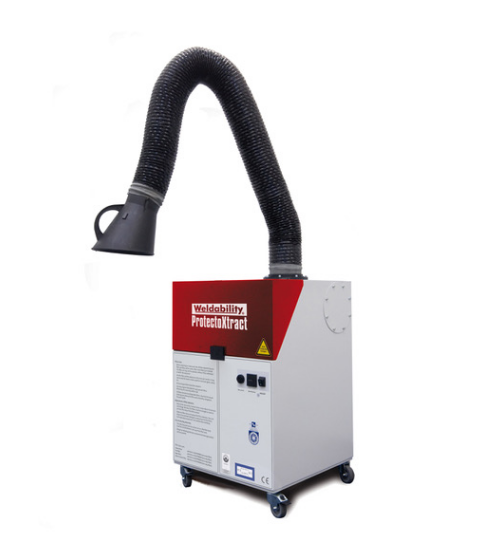

ProtectoXtract is a BGIA approved mobile high-vacuum extraction system for filtration of particulate fumes, dusts and some gases. The ProtectoXtract is a mobile unit, weighing only 80kg and is supplied on swivel casters for manoeuvrability. ProtectoXtract is provided with a 3m positional cantilever arm and
canopy, designed for use in a welding bay, workshop or garage. Operates from a 110v/230v mains input supply.
The ProtectoXtract uses a 5-stage filtration system, with replaceable filters and is quiet in operation (<68dB[A]). The ProtectoXtract is supplied with 3m suction arm, hose with internal joints, filter and provides air movement of 2500 m3/h. When used with processes that produce spatter and/or grinding sparks the optional ProtectoSpark (EXT978013) MUST be used. Compliant with DIN EN ISO 15012-1, so is suitable for category W3 stainless welding fumes (>30% Ni+Cr). The ProtectoXtract should NOT be used for filtering fumes containing oil, solvents, explosive dusts/gases or hybrid mixtures of wastes, etc.
Technical Specification
Extraction Capacity = 115v: 1600 m3/h / 230v : 1600 m3/h
Filter Efficiency = >99%
Motor Power = 1.1kW
Noise Level = 68 dB(A)
IP Rating / ISO Class = IP 54 / F
